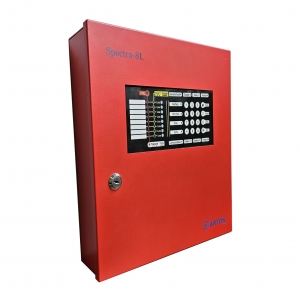

The panel is intended for use in fire alarm and notification systems installed in premises to detect fire, as well as for notification and transmission of information to external equipment and to the ARC indication equipment and meets all the requirements EN54-2, EN 54-4.
Main features:
allows connection to one fire alarm system up to 32 active fire detectors or up to 10 manual call points using a two-wire circuit;
allows connection to the fire alarm system of active fire detectors Art-SP2, Art-HP1, SP-2.1 manufactured by PP "Arton" without installing current-limiting resistors;
the panel is powered from an AC mains voltage 230 V, and in its absence using backup power (two lead-acid batteries, sealed, maintenance-free with a nominal voltage of 12 V and a nominal current of 7 Ah each, the batteries are recharged automatically, protection against incorrect connection and disconnection of the battery when the voltage drops to the final value is provided, and compensation of the battery charge voltage when the temperature changes is provided):
provides operation from the battery for at least 24 hours in standby mode and 30 minutes in the "FIRE" mode;
provides signal output using the following output keys: freely programmable output (OUT1, OUT2, OUT3, OUT4), relay output of the "Fire" signal (FIRE),relay output of the signal "Fault" (FAULT));
provides multi-level access to control functions;
provides status indication using LED indicators;
using the built-in keyboard and LED indication, the panel provides viewing and setting (programming) of parameters and operating functions;
automatically identifies and displays various types of faults and states (see the manual);
operating temperature range from minus 5 to 40 °С;
Specifications
Overall dimensions of the panel: not more than 290x253x80 mm;
Weight of the panel without batteries: not more than 3.5 kg;
Ingress protection: IP30;
Power supply from the AC network with a voltage of 230V (with a tolerance of minus 15% and 10%) frequency (50±1) Hz;
Two lead-acid batteries, sealed, maintenance-free with a nominal voltage of 12 V and a nominal current of 7 Ah each are used as a backup power source for the panel;
Maximum power consumption: 33 W;
Long-term current consumption of the power equipment: no more than 1.9 A;
Maximum long-term current consumption of the panel from the battery: 1.3 A;
Minimum current consumption of the panel (in standby mode) from the battery: 0.2 A;
Maximum number of fire alarm systems connected to the panel: 8;
No-load voltage of the system: (24 ± 0.5) V;
Voltage at the contacts of the fire alarm system at a current in each of the fire alarms up to 45 mA: not less than 22 V;
Current value in the fire alarm system circuit, which is estimated as the state of the fire alarm system: from 3.5 mA to 18 mA;
Current increase value in the fire alarm system, which is estimated by the panel as the state of "ATTENTION" from the automatic detector: from 6 mA to 12 mA, relative to the normal level, but not more than 19 mA;
Current increase value in the fire alarm system, which is estimated by the panel as the state of "FIRE" from the manual detector: from 6 mA to 50 mA.
Current of the fire alarm system, which is estimated by the panel as an open circuit: less 3.2 mA;
The current of the short circuit, which is considered by the panel as a short circuit: more than 50 mA;
The maximum load current of each of the outputs "OUT1"…"OUT4": 400 mA.;
The total load current of the outputs "OUT1"…"OUT4" must be: no more than 1 A;
The duration of automatic reset (disconnect time) of the short circuit during manual reset or during verification of the short circuit: (5 ±1) s;
The duration of waiting for the detector to trigger in the short circuit in the "ATTENTION" state, upon detection of which the panel switches to the "FIRE" mode: 5 min;
Average service life of the panel: at least 10 years;
