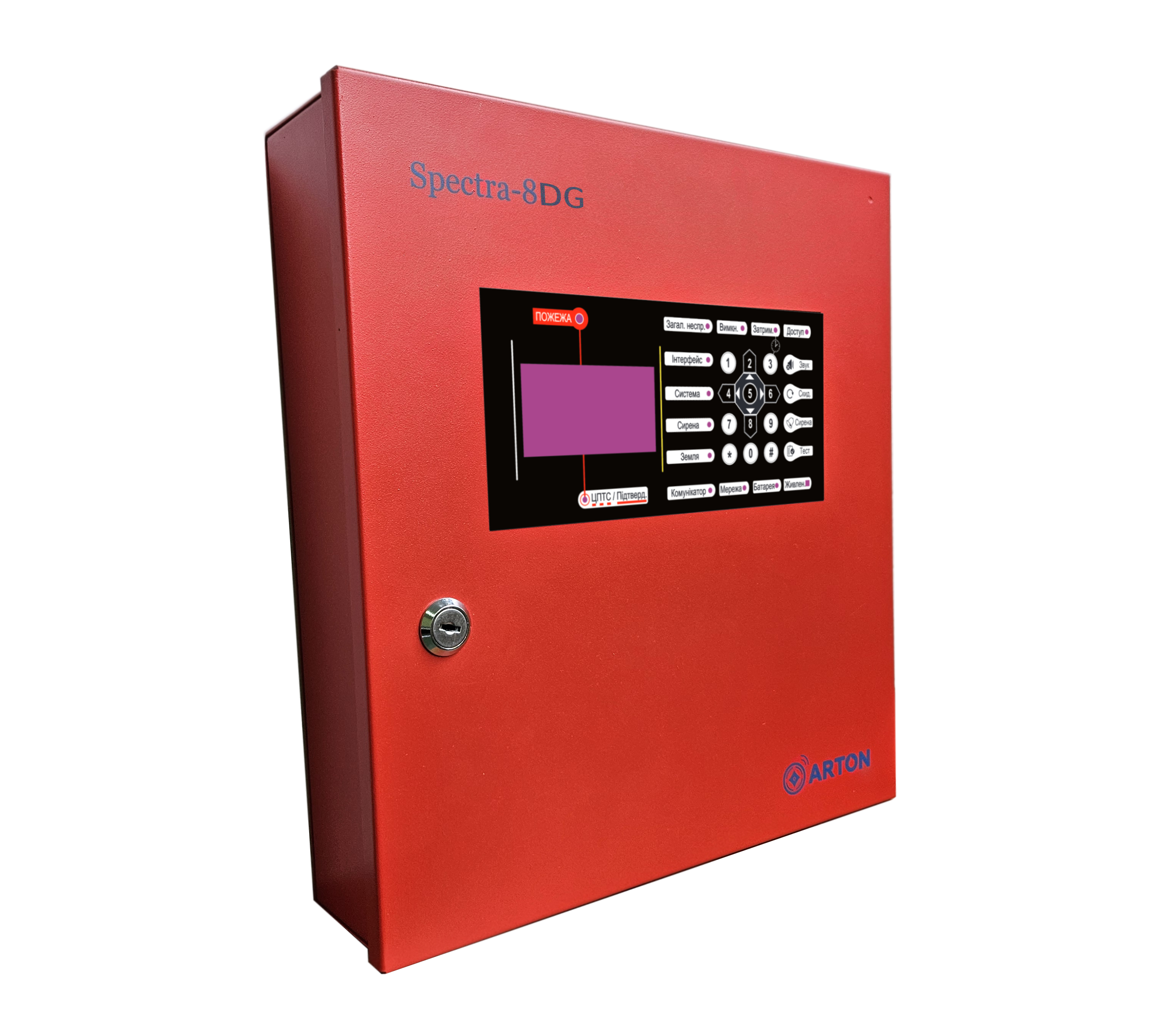

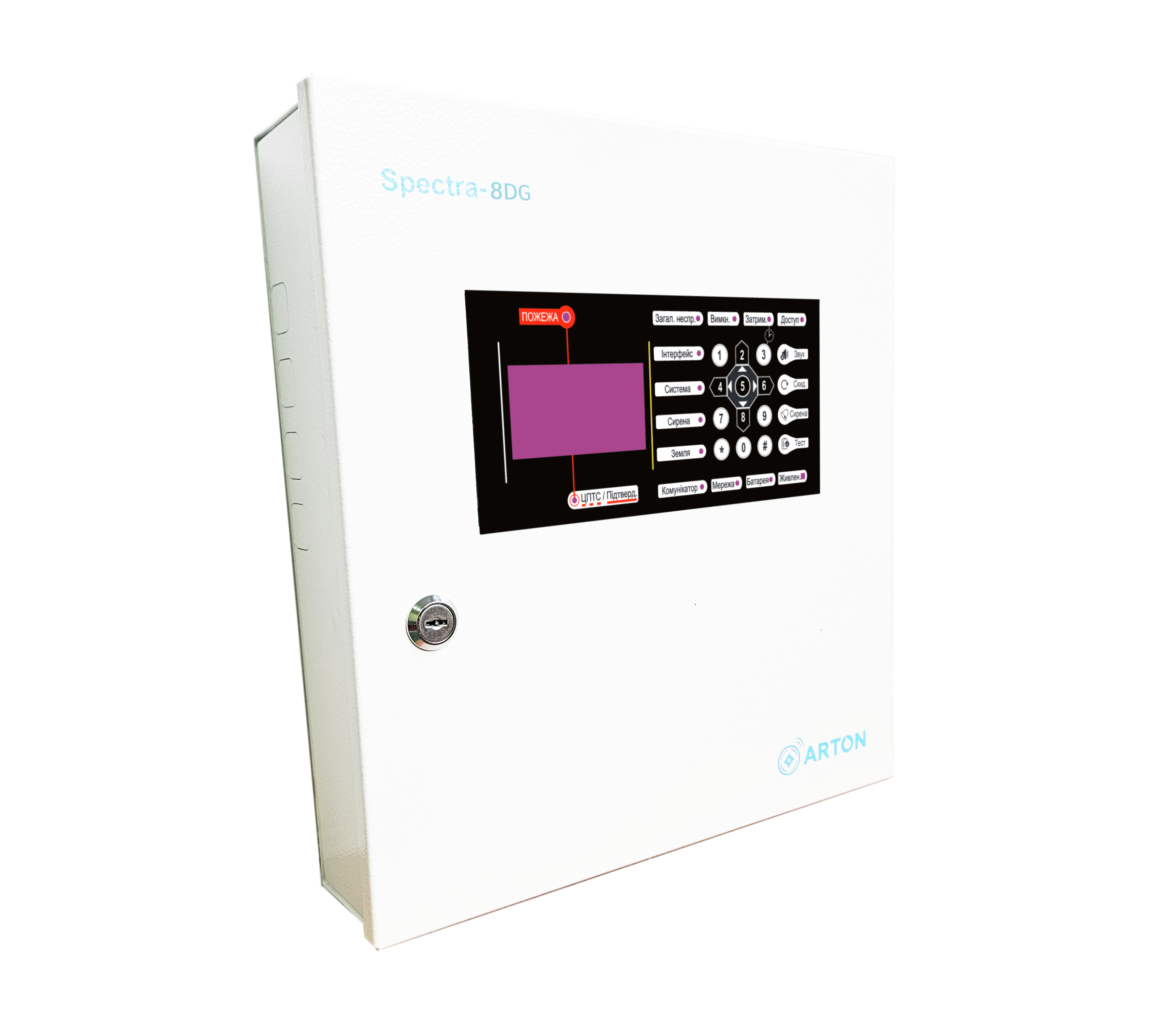

The panel is intended for use in fire alarm and notification systems installed in premises to detect fire, as well as for notification and transmission of information to external equipment and to the ARC indication equipment and meets all the requirements EN54-2, EN 54-4, EN 54-21 (Type 1).
Main features:
allows connection to one fire alarm system up to 32 active fire detectors or up to 10 manual call pointsusing a two-wire circuit;
allows connection to the fire alarm system of active fire detectors Art-SP2, Art-HP1, SP-2.1 manufactured by PP "Arton" without installing current-limiting resistors;
The panel is powered from an AC mains voltage of 230 V, and in its absence by means of a backup power supply (two lead-acid batteries, sealed, maintenance-free with a nominal voltage of 12 V and a nominal current of 7 Ah each, the batteries are recharged automatically, protection against incorrect connection and disconnection of the battery when the voltage drops to the final value is provided, and compensation of the battery charge voltage when the temperature changes is provided):
provides operation from the battery for at least 24 hours in standby mode and 30 minutes in the "FIRE" mode;
provides signal output using the following output keys: freely programmable output (OUT1, OUT2, OUT3, OUT4), relay output of the signal "Fire" (FIRE),relay output of the signal "Fault" (FAULT));
provides multi-level access to control functions;
provides indication of states using the display and LED indicators;
using the built-in keyboard and display indication, the panel provides viewing and setting (programming) of parameters and operating functions;
provides transmission of a fault signal to the central monitoring station - up to 90 s.;
has a built-in communicator (conforms to EN 54-21 (Type 1)), which supports the installation of two SIM cards for transmitting notifications to the central monitoring station via two mobile operators;
automatically identifies and displays various types of faults and states (see in the manual);
operating temperature range from minus 5 to 40 °С;
Specifications
Overall dimensions of the panel: no more than 290x253x80 mm;
Weight of the panel without batteries: no more than 3.5 kg;
Degree of protection of the panel body: IP30;
Power supply from the AC network with a voltage of 230V (with a tolerance of minus 15% and 10%) frequency (50±1) Hz;
Two lead-acid batteries, sealed, maintenance-free with a nominal voltage 12 V and a nominal current 7 Ah each are used as a backup power source for the panel;
Maximum power consumption: 34 W;
Maximum long-term current consumption of the panel from the battery: 1.3;
Minimum current consumption of the panel (in standby mode) from the battery: 0.2 A;
Maximum number of fire alarm systems connected to the panel: 8;
Power supply voltage of the alarm system in the absence of load: (24 ± 0.5) V;
Voltage at the alarm system contacts with a current in each of the alarm systems up to 45 mA: not less than 22 V;
Current value in the alarm system circuit, which is estimated as the state of the CR: – from 3.5 mA to 18 mA;
The value of the current increase in the circuit breaker, which is evaluated by the panel as the "ATTENTION" state from the automatic detector: from 6 mA to 12 mA, relative to the normal level, but not more than 19 mA;
The value of the current increase in the circuit breaker, which is evaluated by the panel as an open circuit: less than 3.2 mA;
The circuit breaker current, which is evaluated by the panele as a short circuit: more than 50 mA;
The maximum load current of each of the outputs "OUT1"…"OUT4": 400 mA.;
The total load current of the outputs must be: no more than 1 A;
Duration of automatic reset (disconnection time) of the fire alarm system during manual reset or verification of the fire alarm system panel switches to the "FIRE" mode: 5 min;
Average service life of the panel: not less than 10 years;
