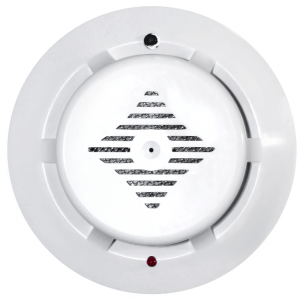

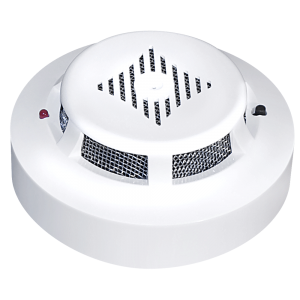

SPD-3.10 Test button Red LED indicates standby and alarm modes Compatible with 10 bases Base model Number of contacts Remote output Relays Relay`s contacts Wiring B01 4 - - - 2-wire B1 6 + - - 2-wire B2 7 - 1 NC 4-wire B3 7 - 1 NO 4-wire B4 8 + 1 NC 4-wire B5 8 + 1 NO 4-wire B6* 8 - 2 NO, NC 4-wire B7* 8 - 2 NO, NO 4-wire B8* 9 + 2 NO, NC 4-wire B9* 9 + 2 NO, NO 4-wire * EOL base Specifications Standby current consumption: 95 μA max Supply voltage range (2-wire): 10-30 V Supply voltage range (4-wire): 12±1,2 V Dimensions: Ø 85×37 mm Weight: 150 g Manuals for SPD-3.10 (0,38 Mb) Related Products K-5 Mounting ring for SPD-3.10 Show Details »
